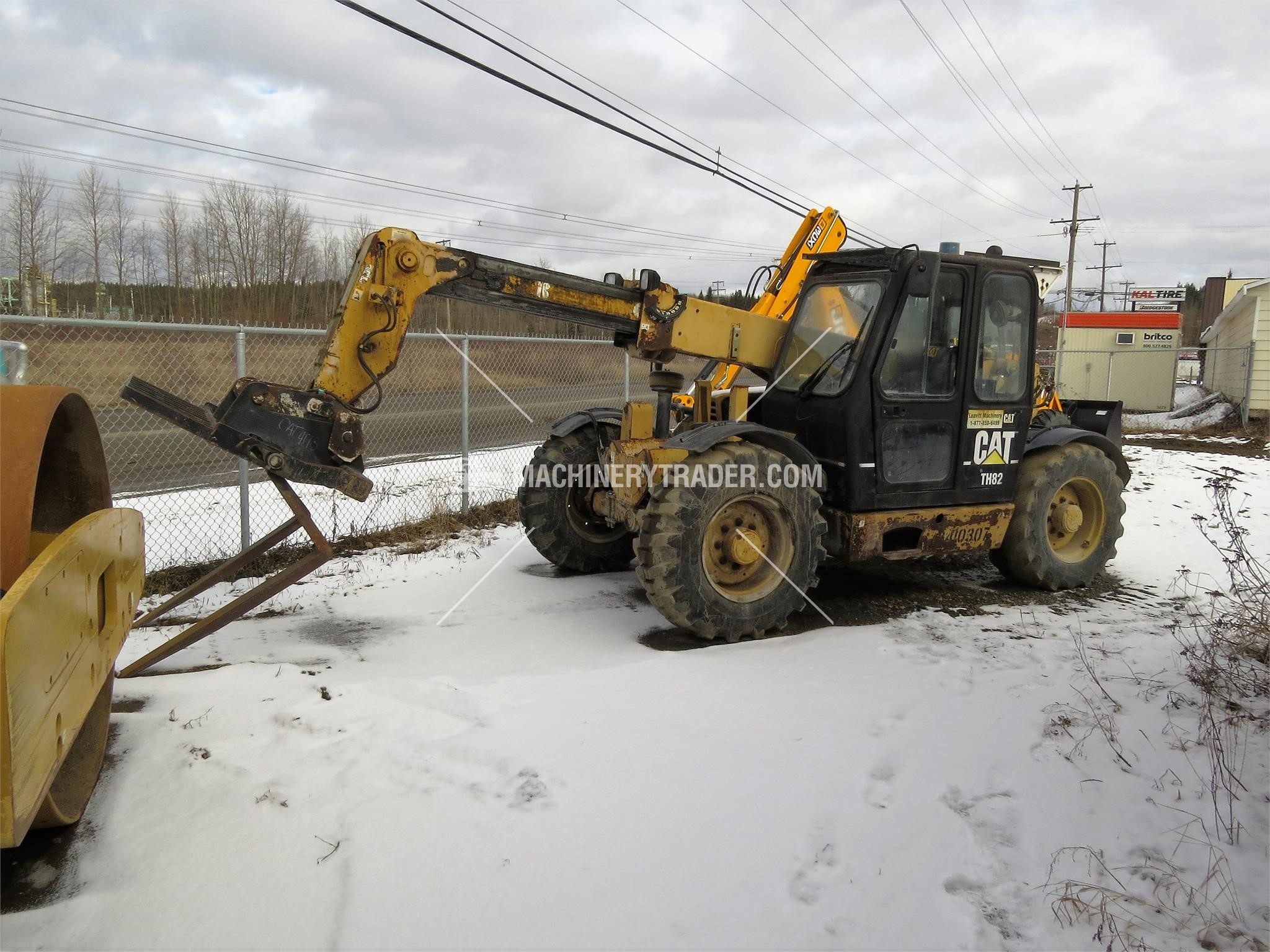

2001 CAT TH82
Price:USD $21,007
Buy
2001 CAT TH82
Used and New
Description:
Engine
Make Caterpillar
Model 3054T
Gross Power 109 hp 81.3 kw
Net Power 81 hp 60.4 kw
Power Measured @ 2200 rpm
Number of Cylinders 4
Displacement 244.1 cu in 4 L
Aspiration Turbocharged
Operational
Operating Weight 16468.5 lb 7470 kg
Fuel Capacity 31.7 gal 120 L
Hydraulic System Fluid Capacity 39.6 gal 150 L
Tire Size Construct: 13x24 12PR Agricult: 17.5LR24
Transmission
Number of Forward Gears 4
Number of Reverse Gears 3
Max Speed - forward 19.9 mph 32 km/h
Max Speed - reverse 13.7 mph 22 km/h
Lift
Max Lift Capacity 8013.8 lb 3635 kg
Max Lift Height 24.9 ft in 7600 mm
Max Load at Max Height 7012.9 lb 3181 kg
Max Forward Reach 13.8 ft in 4200 mm
Max Load at Max Reach 3604.6 lb 1635 kg
Dimensions
Length to Fork Face 15.6 ft in 4760 mm
Width Over Tires 8 ft in 2450 mm
Overall Height 8 ft in 2450 mm
Wheelbase 9.7 ft in 2970 mm
Ground Clearance 17.7 ft in 450 mm
Turning Radius Outside Tires 12.4 ft in 3790 mm
Maximum Lift Height: 300, WheelBase: 117, Shipping Width (inches): 96, Fuel Capacity: 31, Max Travel Speed Empty: 20, Ground Clearance: 17, Max Forward Reach: 161, Shipping Height (inches): 95, Shipping Length (inches): 194, Shipping Weight: 17,151
Make Caterpillar
Model 3054T
Gross Power 109 hp 81.3 kw
Net Power 81 hp 60.4 kw
Power Measured @ 2200 rpm
Number of Cylinders 4
Displacement 244.1 cu in 4 L
Aspiration Turbocharged
Operational
Operating Weight 16468.5 lb 7470 kg
Fuel Capacity 31.7 gal 120 L
Hydraulic System Fluid Capacity 39.6 gal 150 L
Tire Size Construct: 13x24 12PR Agricult: 17.5LR24
Transmission
Number of Forward Gears 4
Number of Reverse Gears 3
Max Speed - forward 19.9 mph 32 km/h
Max Speed - reverse 13.7 mph 22 km/h
Lift
Max Lift Capacity 8013.8 lb 3635 kg
Max Lift Height 24.9 ft in 7600 mm
Max Load at Max Height 7012.9 lb 3181 kg
Max Forward Reach 13.8 ft in 4200 mm
Max Load at Max Reach 3604.6 lb 1635 kg
Dimensions
Length to Fork Face 15.6 ft in 4760 mm
Width Over Tires 8 ft in 2450 mm
Overall Height 8 ft in 2450 mm
Wheelbase 9.7 ft in 2970 mm
Ground Clearance 17.7 ft in 450 mm
Turning Radius Outside Tires 12.4 ft in 3790 mm
Maximum Lift Height: 300, WheelBase: 117, Shipping Width (inches): 96, Fuel Capacity: 31, Max Travel Speed Empty: 20, Ground Clearance: 17, Max Forward Reach: 161, Shipping Height (inches): 95, Shipping Length (inches): 194, Shipping Weight: 17,151
Information:
| Year | 2001 |
| Stock Number | 1799 |
| Lift Capacity | 8,000 lb |
| ROPS | Enclosed |
| Horsepower | 105 |
