MC800 COMACCHIO Heavy sale in Italy

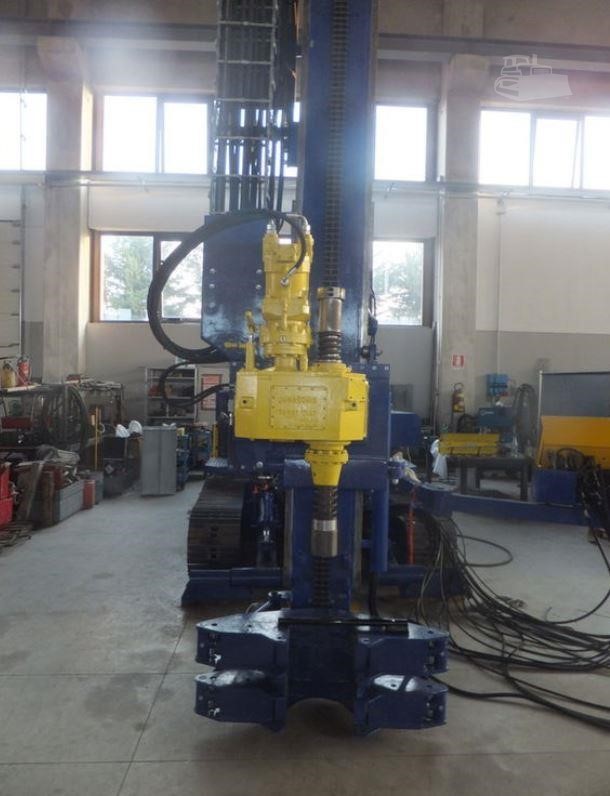

N°1 drilling rig, make Comacchio, model Mc 800S.
Year of manufacture: 2001
Ce certified
Good general conditions

For micropiles, anchoring, soil-nailing and foundation

Diesel engine make deutz, model Bf4M 1013 C, power 118 hp
Feed travel fitted for 3 mt long drill rods
Max pull back force: 5 tons
Rotary head make Eurodrill, model HD 5012. Max torque 900 kGm @ 50 rpm; max torque 450 kgm @ 1000 rpm
Double clamp with max passage 260 mm
Hydraulic winch
Drilling control panel on articulated arm

Immediately available
Visible at our workshop in Fidenza- PR

Price on request.

Year

2001

N°1 drilling rig make Comacchio, model MC 800.
Year of manufacture 2000
CE certified
Engine: make Deutz, model 1013; max power 118 hp
Feed travel fitted for 3 mt long drill rods; mast extension to mange 6 mt long casings.
Pull back force: 6 tons
Rotary head with max torque 1100 kgm; 6 speeds. Max speed up to 740 rpm
Double clamp: max passage 300 mm
Winch with max pull line 2000 kg at first layer.

Drilling control panel on articulated arm

Good conditions: very good
We are proposing this drilling rig, used, fully reconditioned and in ready to work state. Currently, 11th of July, 2015 is under extraordinary maintenance work. It will be completed in approx. 3 weeks.

Approx. weight: 10500 kg
Price on request

Year

2000
