2007 MORBARK 7600
Price:Call
Buy

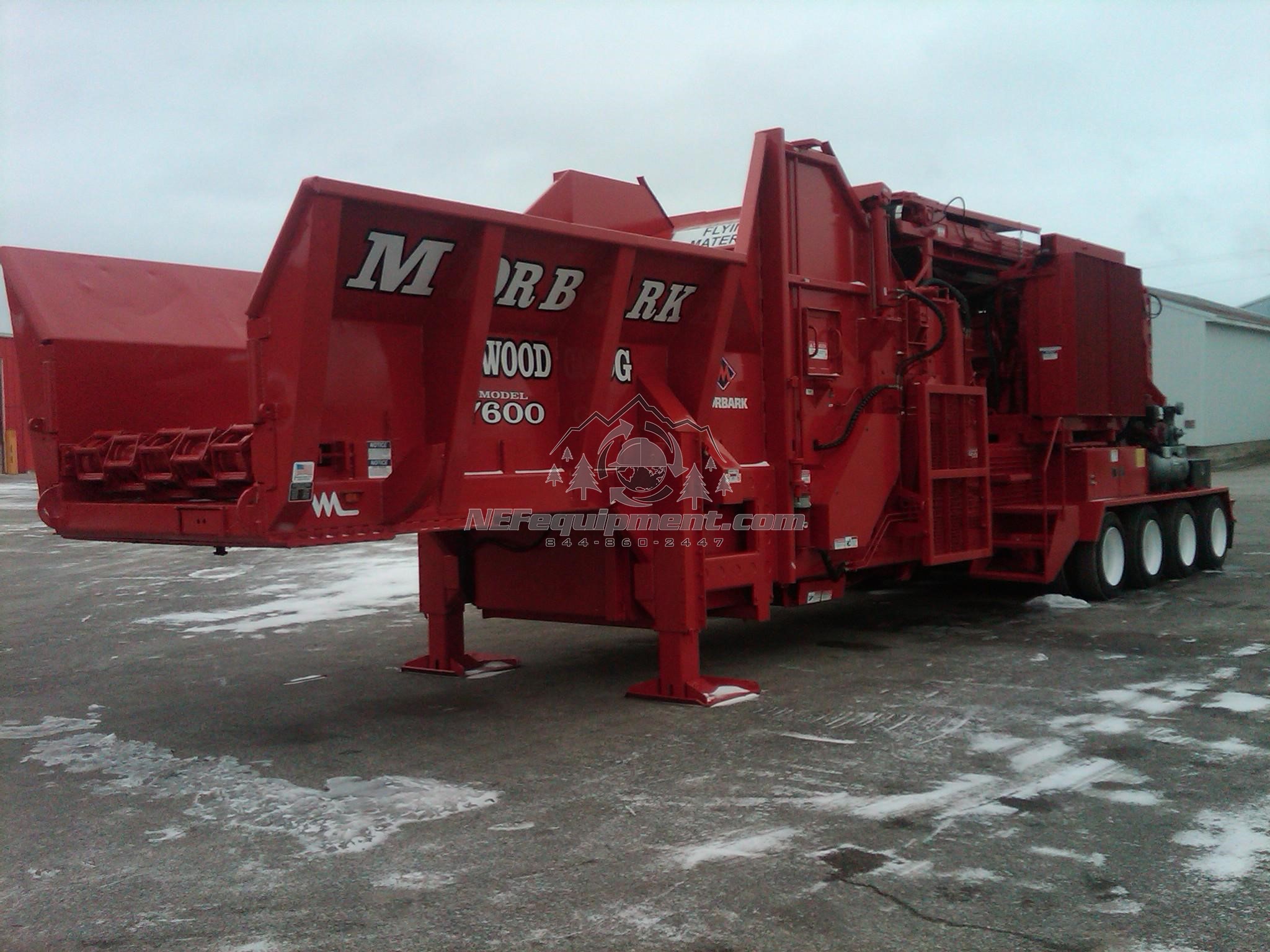

2007 MORBARK 7600
Used and New
Description:
CAT 3412, Complete Engine was rebuilt at 3049 hours, New drive coupler, PT Wet Clutch, 18 Hammers, Drive Protection, Wear Plates in Good Condition
Length (transport)............................................................ 47’4’’
Length (operating).........................................................70’11”
Height ..................................................................................13’ 6”
Width.................................................................................... 11’5”
Gross weight ...................................................... 106,500 lbs.
Axle weight..............................................................67,560 lbs.
Tongue weight.......................................................38,940 lbs.
Engine............................................................CAT
Horsepower........................................... 1,000
Fuel capacity (tank) ...........................................430 gallons
Hydraulic oil capacity.........................................260 gallons
Iqan System • Wireless radio remote control • 11-HP air
compressor
INFEED SYSTEM
76” x 65” infeed opening
16 cubic yard infeed hopper
20’ x 74” live floor with 5-strand WDH 120 chain
(1) horizontal feed wheel with internal drive, 50” x 69”
HAMMERMILL AND GRATES
49 1/2” x 73” hammermill equipped with heavy duty 35”
diameter rotor, (18) 13/8” thick rotor plates keyed on an
81/2” diameter shaft with 5 7/16” Dodge bearings, (18) 21/2”
thick balanced forged steel fixed teeth insert holders
equipped with (18) 4” wide double-edged replaceable teeth inserts
The information is the best of our knowledge at the time of the listing. The price may change without notice
and additional charges may apply, including freight, taxes, duties,tariffs, quarantine, etc.
Length (transport)............................................................ 47’4’’
Length (operating).........................................................70’11”
Height ..................................................................................13’ 6”
Width.................................................................................... 11’5”
Gross weight ...................................................... 106,500 lbs.
Axle weight..............................................................67,560 lbs.
Tongue weight.......................................................38,940 lbs.
Engine............................................................CAT
Horsepower........................................... 1,000
Fuel capacity (tank) ...........................................430 gallons
Hydraulic oil capacity.........................................260 gallons
Iqan System • Wireless radio remote control • 11-HP air
compressor
INFEED SYSTEM
76” x 65” infeed opening
16 cubic yard infeed hopper
20’ x 74” live floor with 5-strand WDH 120 chain
(1) horizontal feed wheel with internal drive, 50” x 69”
HAMMERMILL AND GRATES
49 1/2” x 73” hammermill equipped with heavy duty 35”
diameter rotor, (18) 13/8” thick rotor plates keyed on an
81/2” diameter shaft with 5 7/16” Dodge bearings, (18) 21/2”
thick balanced forged steel fixed teeth insert holders
equipped with (18) 4” wide double-edged replaceable teeth inserts
The information is the best of our knowledge at the time of the listing. The price may change without notice
and additional charges may apply, including freight, taxes, duties,tariffs, quarantine, etc.
Information:
| Year | 2007 |
| Location | Arizona |
| Stock Number | 07M7600AZCN |
| Hours | 4,342 |
| Horse Power | 1,000 |
Part catalog for 7600 Morbark
