CAT 939C
Price:USD $34,900
Buy
CAT 939C
Used and New
Description:
CAT 939C DOZER, 16” TRACK, CANOPY, 90 HP POWERTRAIN, HYSTAT JOYSTICK CONTROL, UNDERCARRIAGE WITH NEW LINK (CHAIN) ASSEMBLY, READY TO GO TO WORK!
This Cat 939C Dozer is simply the smoothest finish grading machine in the industry. This machine is equipped with an Undercarriage designed and built by Caterpillar to maximize the wear life. This undercarriage has new link (chain) assemblys. As you can see in the pictures, the undercarriage is in like new condition. With the Cat 3046T 90 HP Engine, this machine has increased horsepower and improved fuel economy for superior performance.
The wide, large capacity bucket is designed and built for maximum production. With the Hystat Joystick Control you can effortlessly control speed, direction and steering with a single joystick.
NOTHING WORKS LIKE A CAT!
CLEAN MACHINE!
DON’T LET THIS ONE GET AWAY!
“FINANCING AVAILABLE”
PLEASE CALL US WITH ANY QUESTIONS!
Year: 1998
Make: Caterpillar
Model: 939C Dozer
Hours: 3628
Serial Number: 6DS00681
Engine
Make: Caterpillar
Model: 3046T
Net Power: 90 hp
Displacement: 305 cu in, 5 L
Power Measured @: 2400 rpm
Aspiration: Turbocharger
Number of Cylinders: 6
Operational
Operating Weight: 20908 lb
Fuel Capacity: 41.4 gal
Cooling System Fluid Capacity: 5.5 gal
Engine Oil Capacity: 3.4 gal
Final Drive Fluid Capacity - each: 3.9 gal
Hydraulic System Fluid Capacity: 15 gal
Static Tipping Load: 14565 lb
Breakout Force - Std Bucket: 20200 lb
Bucket Capacity - struck: 1.3 yd3
Bucket Capacity - heaped:1.5 yd3
Operating Voltage: 12 V
Alternator Supplied Amperage: 55 amps
Undercarriage
Track Shoe Width: 16 in
Number of Shoes per Side: 37
Number of Track Rollers per Side: 6
Length of Track on Ground: 7 ft in
Ground Contact Area: 2700 in2
Ground Pressure: 7.8 psi
Track Gauge: 61 in
Hydraulic
Pump Type: Gear
Pump Flow Capacity: 35 gal/min
Relief Valve Pressure: 2875 psi
Raise Time: 5.6 sec
Dump Time: 2.4 sec
Lower Time: 2.9 sec
Dimensions
Length to Front of Track: 9.8 ft in
Length with Bucket on Ground: 14.3 ft in
Width to Outside of Tracks: 6.4 ft in
Height to Top of Cab: 9.1 ft in
Ground Clearance: 1.2 ft in
Clearance at Full Height and Dump: 8.8 ft in
Reach at Dump Height: 2.8 ft in
This Cat 939C Dozer is simply the smoothest finish grading machine in the industry. This machine is equipped with an Undercarriage designed and built by Caterpillar to maximize the wear life. This undercarriage has new link (chain) assemblys. As you can see in the pictures, the undercarriage is in like new condition. With the Cat 3046T 90 HP Engine, this machine has increased horsepower and improved fuel economy for superior performance.
The wide, large capacity bucket is designed and built for maximum production. With the Hystat Joystick Control you can effortlessly control speed, direction and steering with a single joystick.
NOTHING WORKS LIKE A CAT!
CLEAN MACHINE!
DON’T LET THIS ONE GET AWAY!
“FINANCING AVAILABLE”
PLEASE CALL US WITH ANY QUESTIONS!
Year: 1998
Make: Caterpillar
Model: 939C Dozer
Hours: 3628
Serial Number: 6DS00681
Engine
Make: Caterpillar
Model: 3046T
Net Power: 90 hp
Displacement: 305 cu in, 5 L
Power Measured @: 2400 rpm
Aspiration: Turbocharger
Number of Cylinders: 6
Operational
Operating Weight: 20908 lb
Fuel Capacity: 41.4 gal
Cooling System Fluid Capacity: 5.5 gal
Engine Oil Capacity: 3.4 gal
Final Drive Fluid Capacity - each: 3.9 gal
Hydraulic System Fluid Capacity: 15 gal
Static Tipping Load: 14565 lb
Breakout Force - Std Bucket: 20200 lb
Bucket Capacity - struck: 1.3 yd3
Bucket Capacity - heaped:1.5 yd3
Operating Voltage: 12 V
Alternator Supplied Amperage: 55 amps
Undercarriage
Track Shoe Width: 16 in
Number of Shoes per Side: 37
Number of Track Rollers per Side: 6
Length of Track on Ground: 7 ft in
Ground Contact Area: 2700 in2
Ground Pressure: 7.8 psi
Track Gauge: 61 in
Hydraulic
Pump Type: Gear
Pump Flow Capacity: 35 gal/min
Relief Valve Pressure: 2875 psi
Raise Time: 5.6 sec
Dump Time: 2.4 sec
Lower Time: 2.9 sec
Dimensions
Length to Front of Track: 9.8 ft in
Length with Bucket on Ground: 14.3 ft in
Width to Outside of Tracks: 6.4 ft in
Height to Top of Cab: 9.1 ft in
Ground Clearance: 1.2 ft in
Clearance at Full Height and Dump: 8.8 ft in
Reach at Dump Height: 2.8 ft in
Information:
| Serial Number | 6DS00681 |
| Hours | 3,627 |
| ROPS | Open |
2006 CAT 939C
Price:
Buy
2006 CAT 939C
Used and New
Description:
S/N- 6DS01848 ARR# 1151096
ENG. 3046 S/N- 5XK38503 ARR# 1498749
MACHINE CAME IN FROM A FLOOD MOST COMPONENTS SEALED AND GOOD ENGINE HAD HOLE IN BLOCK UNDERCARRIAGE WAS WORN OUT GP BUCKET FAIR SHAPE
ENG. 3046 S/N- 5XK38503 ARR# 1498749
MACHINE CAME IN FROM A FLOOD MOST COMPONENTS SEALED AND GOOD ENGINE HAD HOLE IN BLOCK UNDERCARRIAGE WAS WORN OUT GP BUCKET FAIR SHAPE
Information:
| Year | 2006 |
| Serial Number | 6DS01848 |
2006 CAT 939C
Price:USD $34,500
Buy
2006 CAT 939C
Used and New
Description:

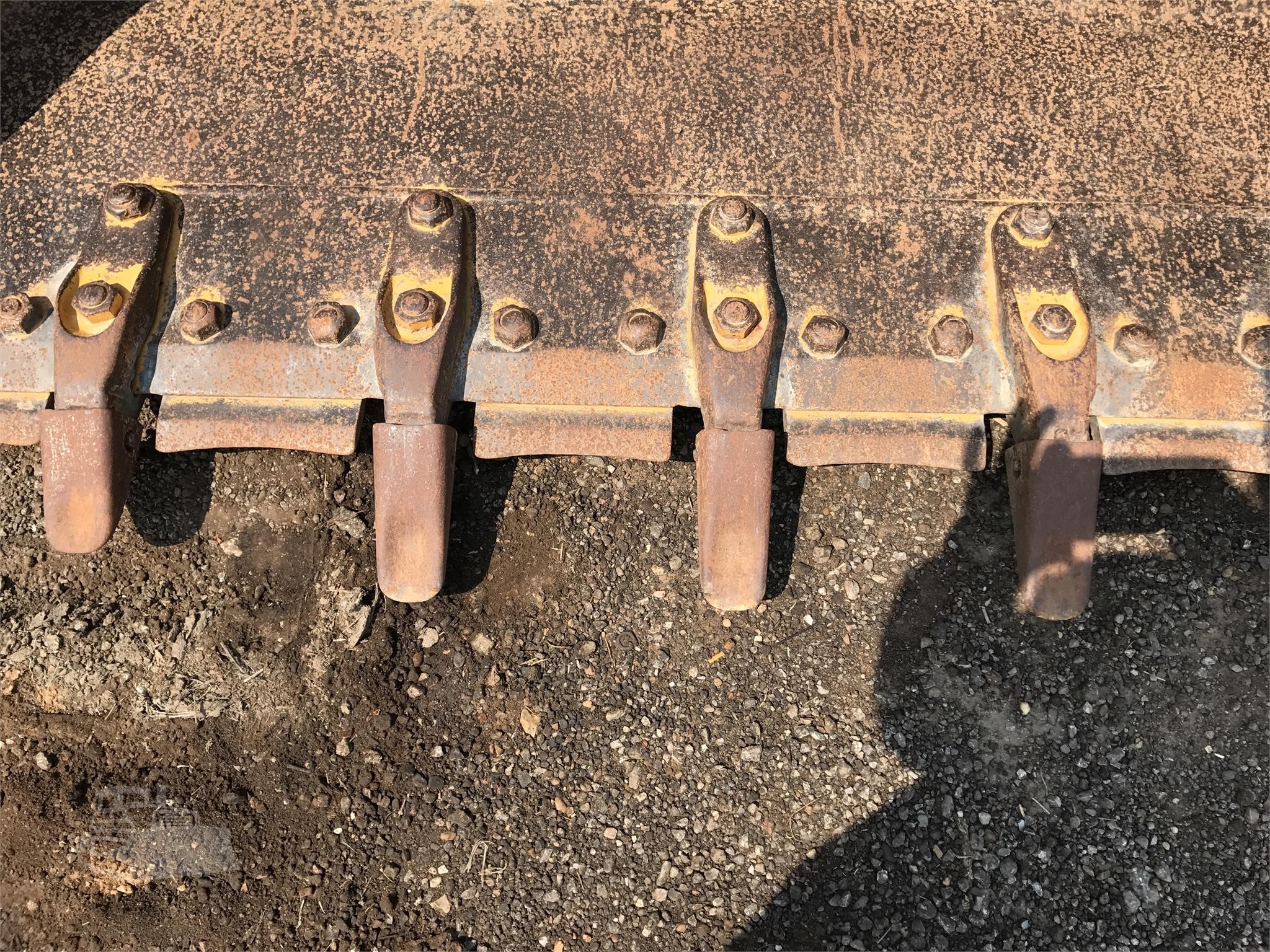

MAKE OFFER!!! This Caterpillar 939C is a One Owner and Original Paint machine that is ready to get to work. This 939C features OROPS, Screens, Cat MS Rippers, Hydrostatic Drive, 1.5 CU YD Tooth Bucket, 90 HP Caterpillar 3046T Engine, and only 3400 Hours. Save Thousands on this Original, Clean, Work Ready, and Wholesale Priced 2006 Caterpillar 939C Track Loader! Make an Offer Today! Give us a call with any questions or concerns that you may have about purchasing equipment on-line. Check out the HD Video below of this 2006 Caterpillar 939C Track Loader in action
Information:
| Year | 2006 |
| Stock Number | CA1861 |
| ROPS | Open |
| Hours | 3,400 |
| Horsepower | 90 |
Part catalog for 939C Caterpillar
