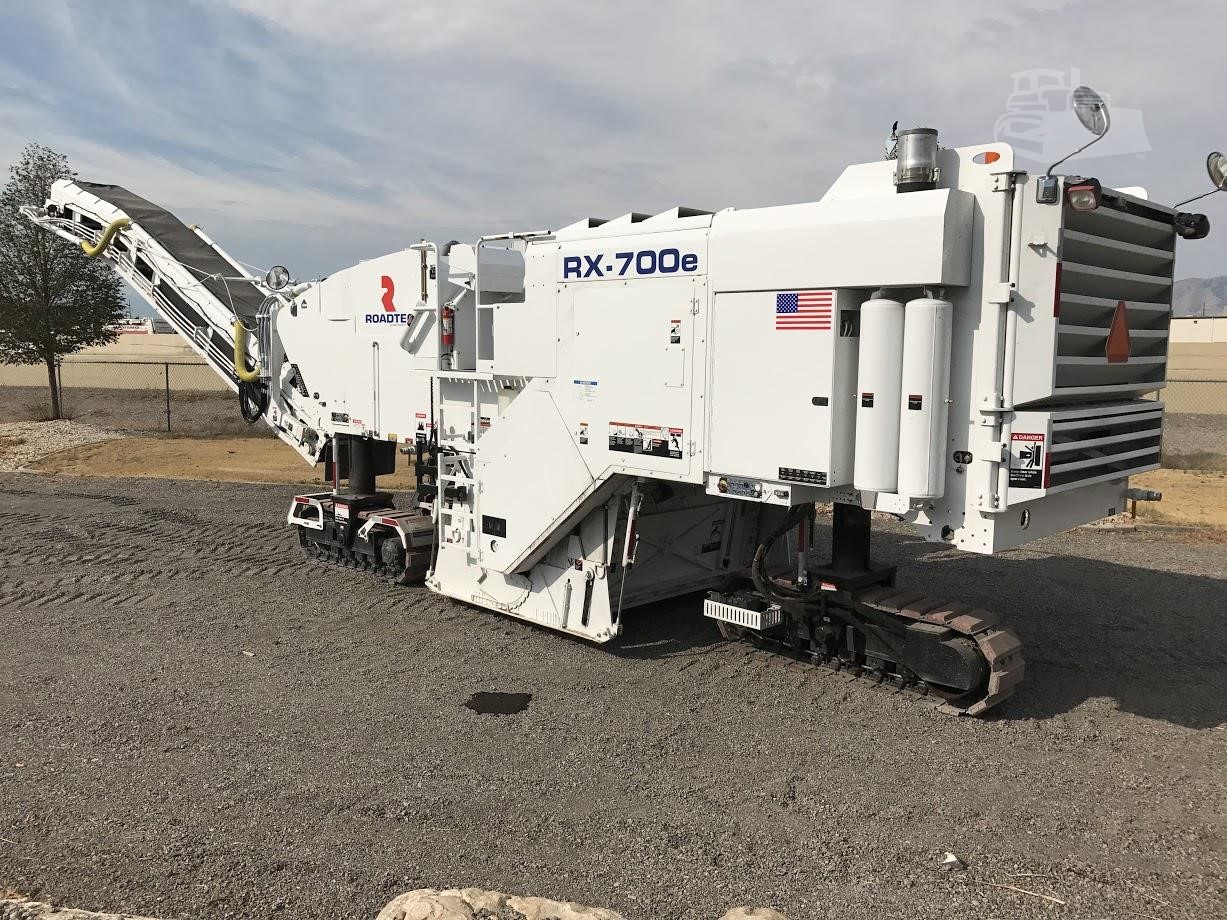

RX700E ROADTEC Heavy sale in Utah

Engine
• RX-700e: Tier 4i; Caterpillar® C18 755 hp (563 kW) @ 1,900 rpm
• RX-700ex: Tier 3; Caterpillar® C18 700 hp (563 kW) @ 1,900 rpm
Weight
• Three-track: 80,000 lbs (36,287 kg)
• Four-track: 84,000 lbs (38,101 kg)
Electrical System
• 24v system with onboard and remote diagnositcs via Roadtec
Guardian™ Remote Telematics System
• Two 8D batteries & 105 amp alternator
• Emergency engine shut-down; cutter disengages and engine
shuts down when rear cutter door is opened
PROPEL SYSTEM
• Hydrostatic drive with automatic traction control
• Hydraulically controlled suspension. Manual and automatic.
SpeedS
• 0-3 mph infinitely variable (0-4.8 kph)
Tracks
• Direct hydraulic, plantary track drives. Bolt-on, replaceable poly
track pads 14” (356 mm) wide
• Rear track width on 3-track machine: 16” (406 mm)
Turning Radius
• Three-track: 5’8” (1,727 mm)
• Four-track: 6’8” (2,032 mm)
Operator Station
• Left/right side full-function operator stations on shock-absorbing
operator platform with joy stick controls
Conveyors
• 36” (915 mm) wide endless, heavy-duty belts with 1” (25.4 mm)
tall molded rubber cleats
• Canvas load-out conveyor covers and self-cleaning pulleys
• 120° load-out conveyor swing capability
Standard Light & Electrical Outlet
• 24v lights & 24v DC power outlets, 2 magnetic base work lights
Service Capacities
• Fuel Tank ...........................................................................340 gal (1,287 l)
• Hydraulic Fluid Tank......................................................100 gal (379 l)
• Water Tank .......................................................................1,100 gal (3,028 l)
Maximum Cut Depth
• 14” (356 mm)
Available Cut WidthS
• 6’7” (2,007 mm), 7’2” (2,185 mm), 8’2” (2,489 mm),
10’6” (3,201 mm)
Cutter Drive & Gear Box
• Bolt-on with mechanical v-belt drive. Automatic drive belt
tensioning.
• W-50 Fairfield® cutter gear box with mechanical fail safe to
protect engine from shock loads.

Year	2017
Serial Number	2100

Engine
• RX-700e: Tier 4i; Caterpillar® C18 755 hp (563 kW) @ 1,900 rpm
• RX-700ex: Tier 3; Caterpillar® C18 700 hp (563 kW) @ 1,900 rpm
Weight
• Three-track: 80,000 lbs (36,287 kg)
• Four-track: 84,000 lbs (38,101 kg)
Electrical System
• 24v system with onboard and remote diagnositcs via Roadtec
Guardian™ Remote Telematics System
• Two 8D batteries & 105 amp alternator
• Emergency engine shut-down; cutter disengages and engine
shuts down when rear cutter door is opened
PROPEL SYSTEM
• Hydrostatic drive with automatic traction control
• Hydraulically controlled suspension. Manual and automatic.
SpeedS
• 0-3 mph infinitely variable (0-4.8 kph)
Tracks
• Direct hydraulic, plantary track drives. Bolt-on, replaceable poly
track pads 14” (356 mm) wide
• Rear track width on 3-track machine: 16” (406 mm)
Turning Radius
• Three-track: 5’8” (1,727 mm)
• Four-track: 6’8” (2,032 mm)
Operator Station
• Left/right side full-function operator stations on shock-absorbing
operator platform with joy stick controls
Conveyors
• 36” (915 mm) wide endless, heavy-duty belts with 1” (25.4 mm)
tall molded rubber cleats
• Canvas load-out conveyor covers and self-cleaning pulleys
• 120° load-out conveyor swing capability
Standard Light & Electrical Outlet
• 24v lights & 24v DC power outlets, 2 magnetic base work lights
Service Capacities
• Fuel Tank ...........................................................................340 gal (1,287 l)
• Hydraulic Fluid Tank......................................................100 gal (379 l)
• Water Tank .......................................................................1,100 gal (3,028 l)
Maximum Cut Depth
• 14” (356 mm)
Available Cut WidthS
• 6’7” (2,007 mm), 7’2” (2,185 mm), 8’2” (2,489 mm),
10’6” (3,201 mm)
Cutter Drive & Gear Box
• Bolt-on with mechanical v-belt drive. Automatic drive belt
tensioning.
• W-50 Fairfield® cutter gear box with mechanical fail safe to
protect engine from shock loads.

Serial Number

2095
