2006 CEDARAPIDS COBRA TRACK 1300
Price:USD $340,000
Buy
2006 CEDARAPIDS COBRA TRACK 1300
Used and New
Description:

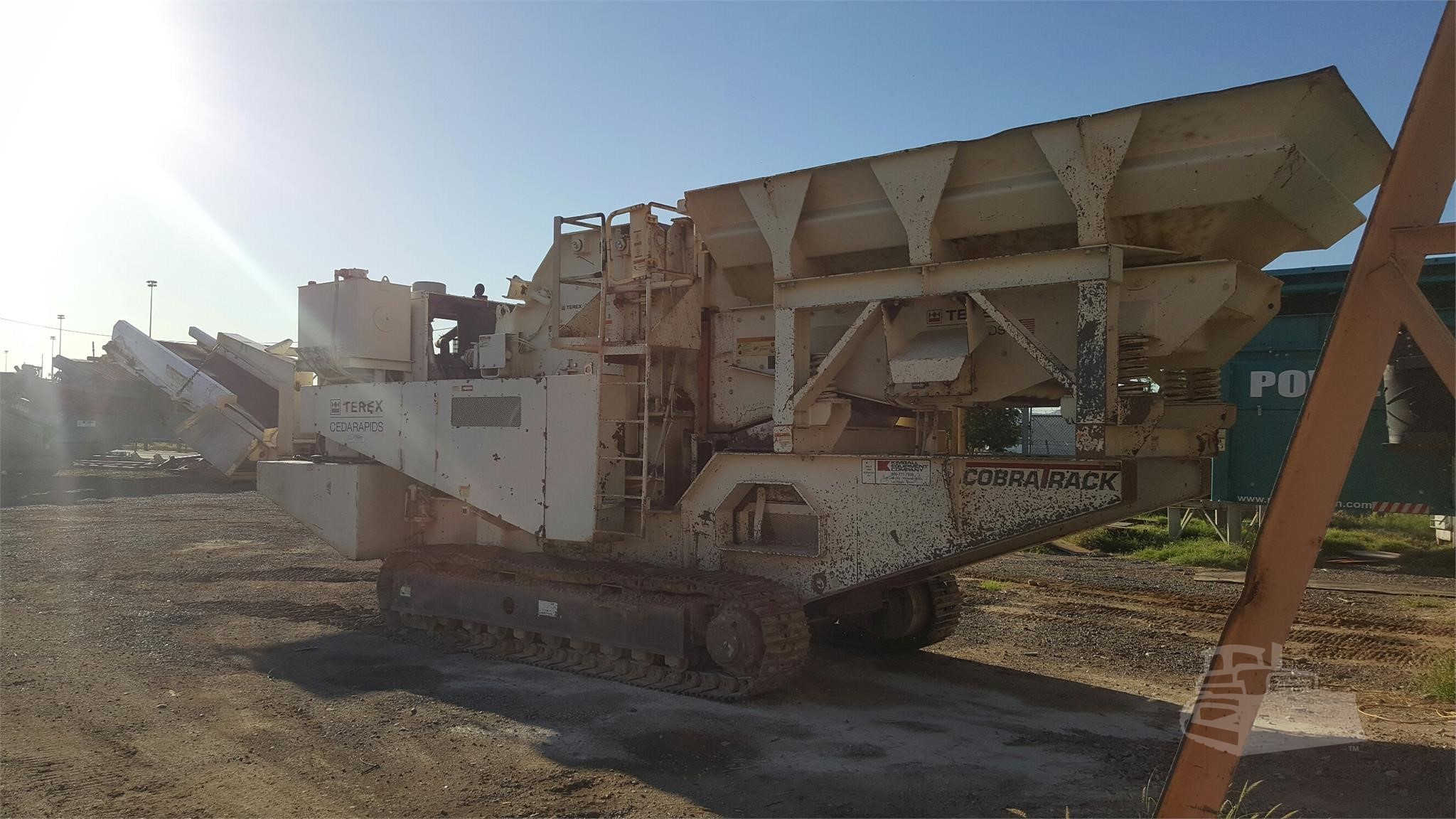

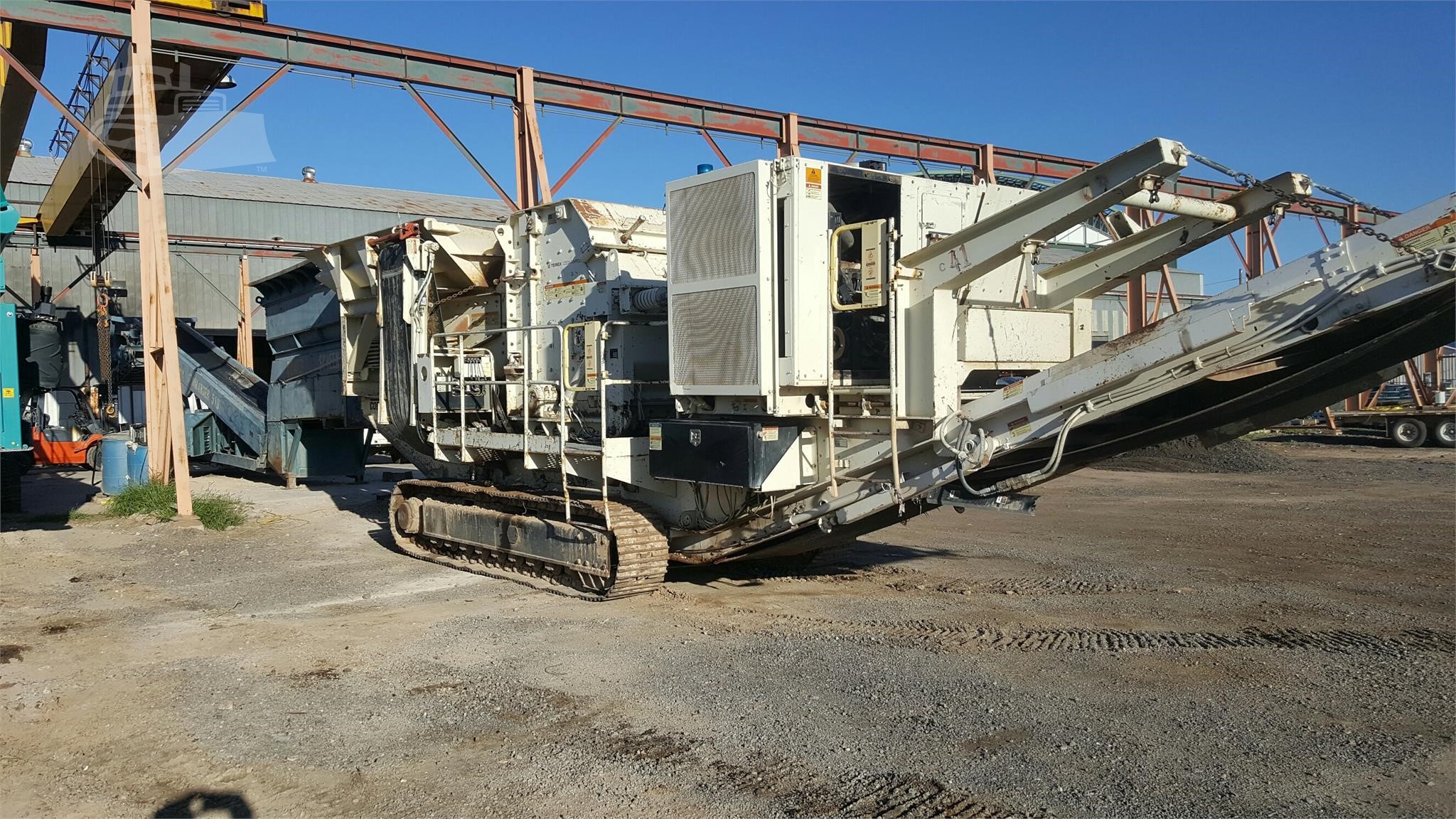

2006 TEREX CEDARAPIDS COBRATRACK 1300 TRACK MOUNTED IMPACTOR
Terex Cedarapids 5048 horizontal shaft impact crusher
Terex Cedarapids 42" x 14' vibrating grizzly feeder

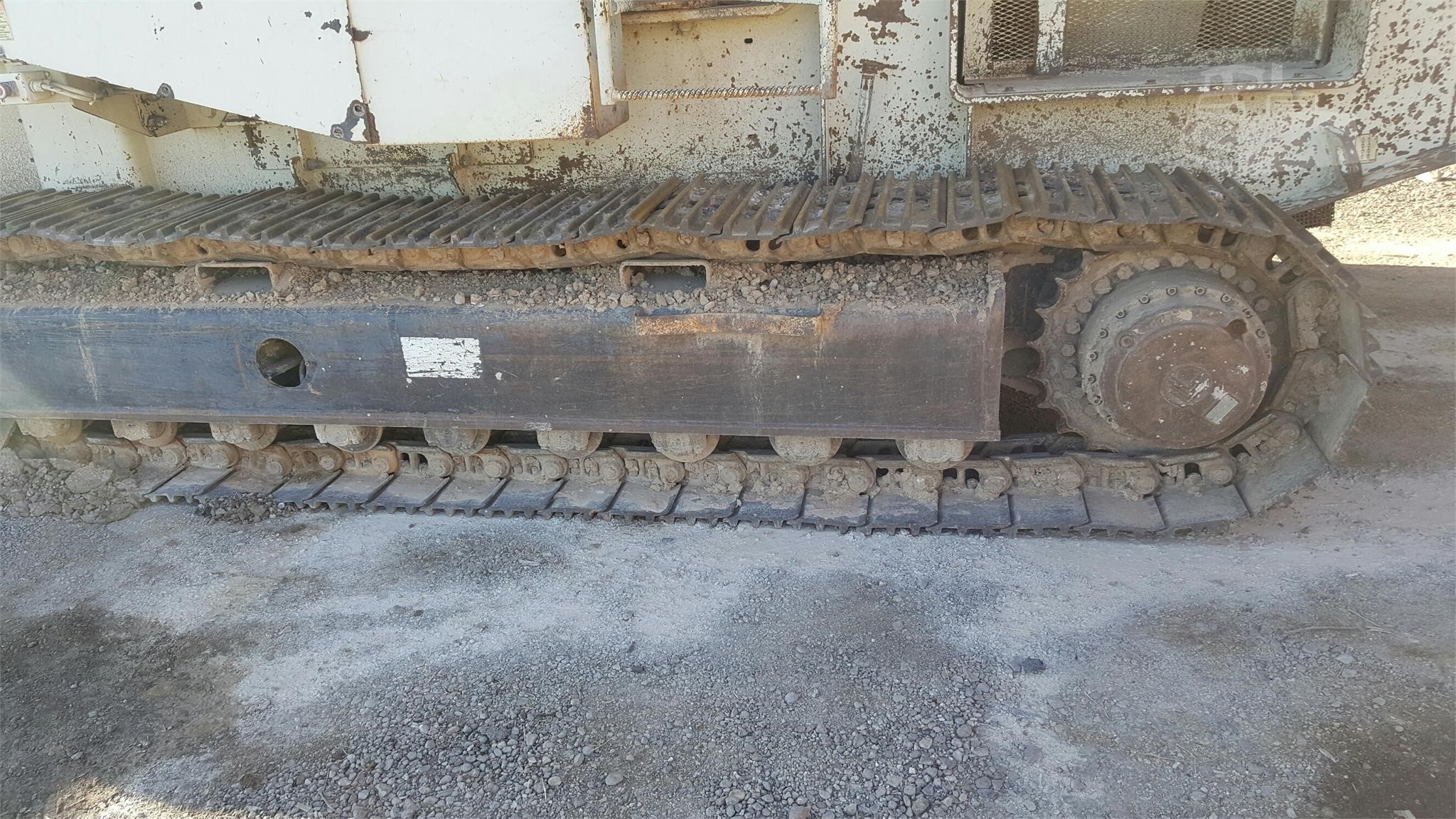

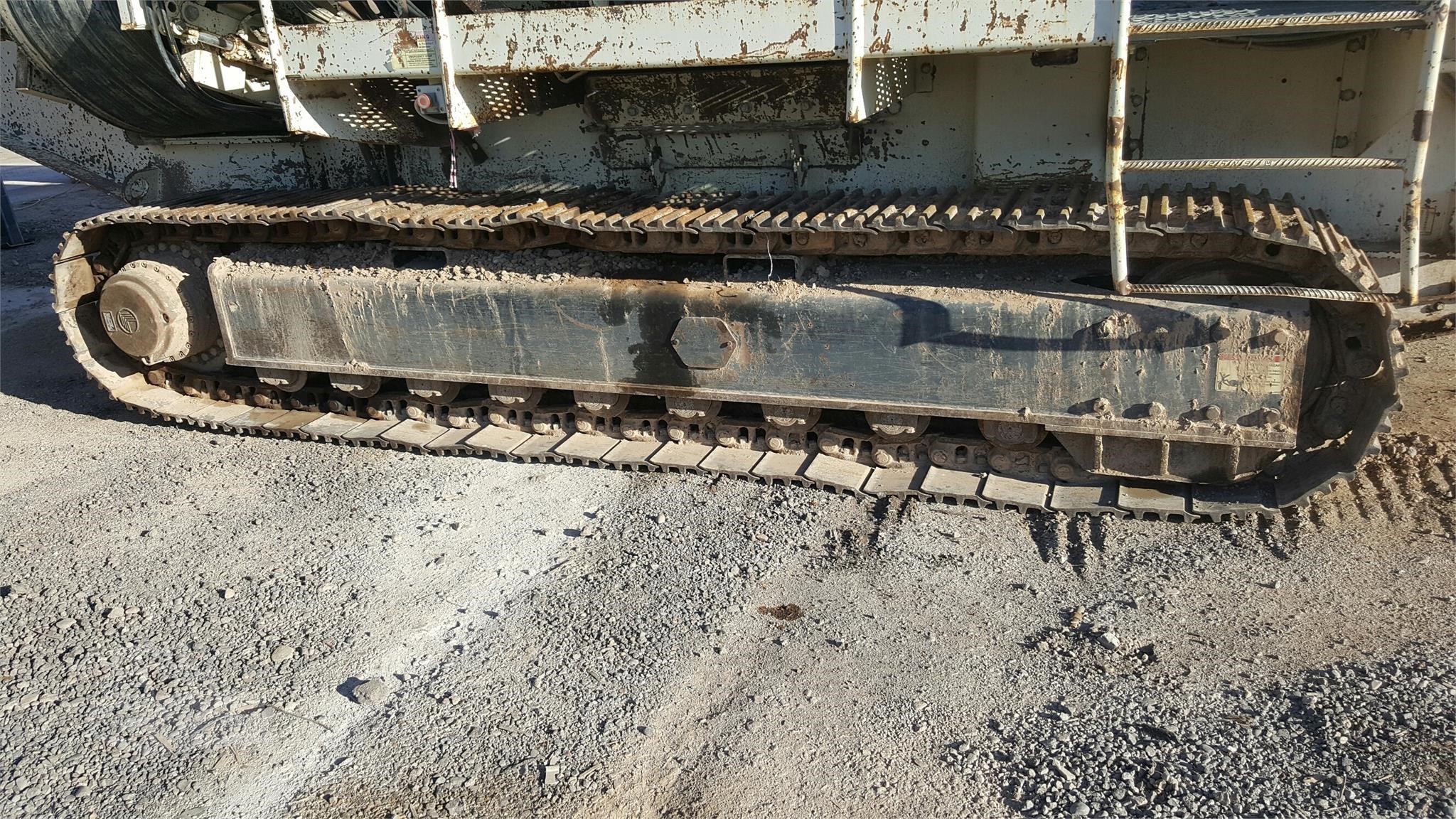

"B5" track with individual hydrostatic drive motors
42" product conveyor hydraulic drive
24" wide side discharge bypass conveyor with 2-way bypass chute
Cummins QSM11 power unit rated 400 HP @ 1800 RPM
Plant controls with radio remote for track speed, grizzly feeder and E-stop
Dust suppression spray system with pump, filter and atomizer nozzles
Chassis, walkways, platforms and guards

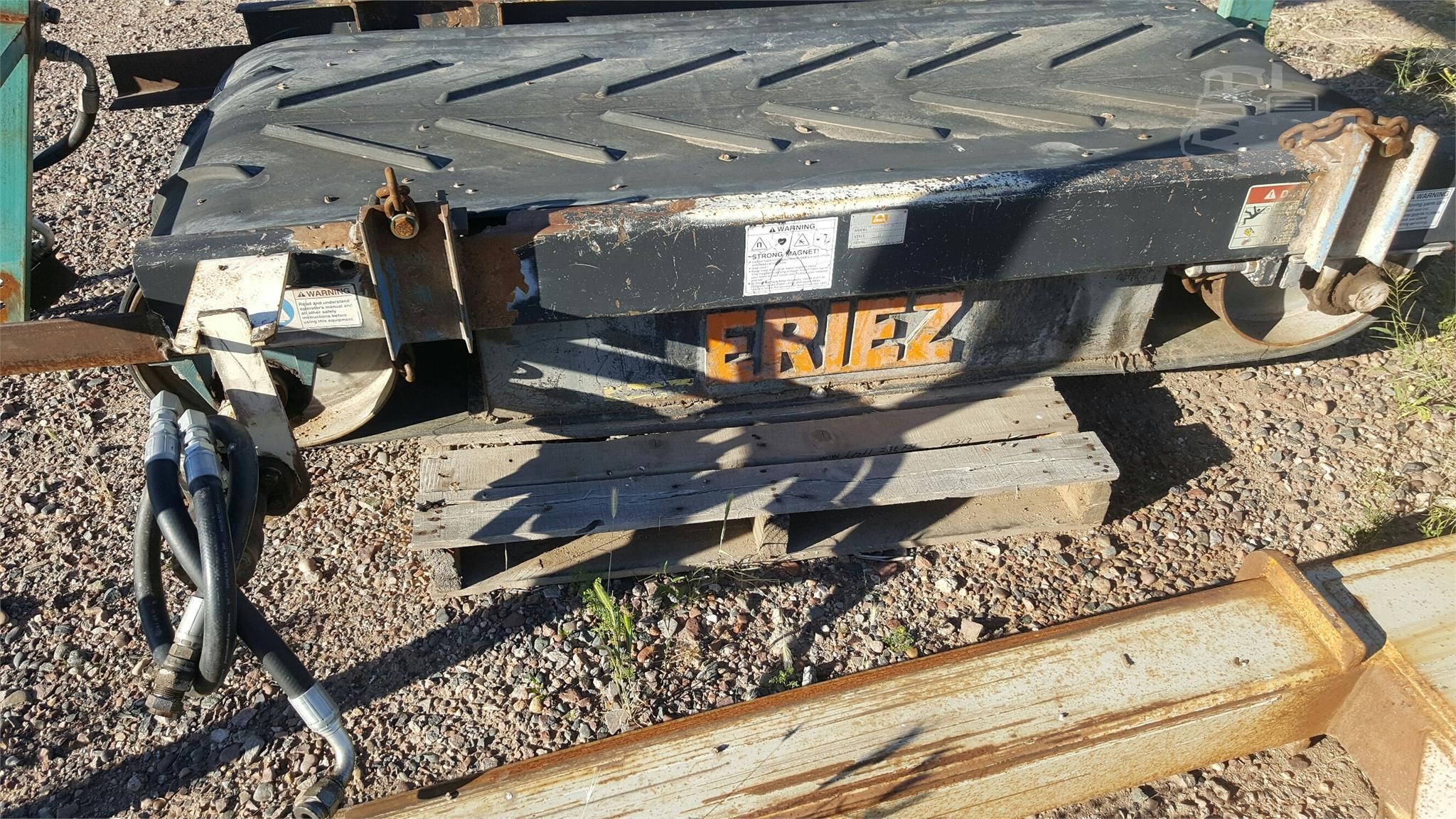

Optional 41" long cross belt Eriez magnet with hydraulic drive

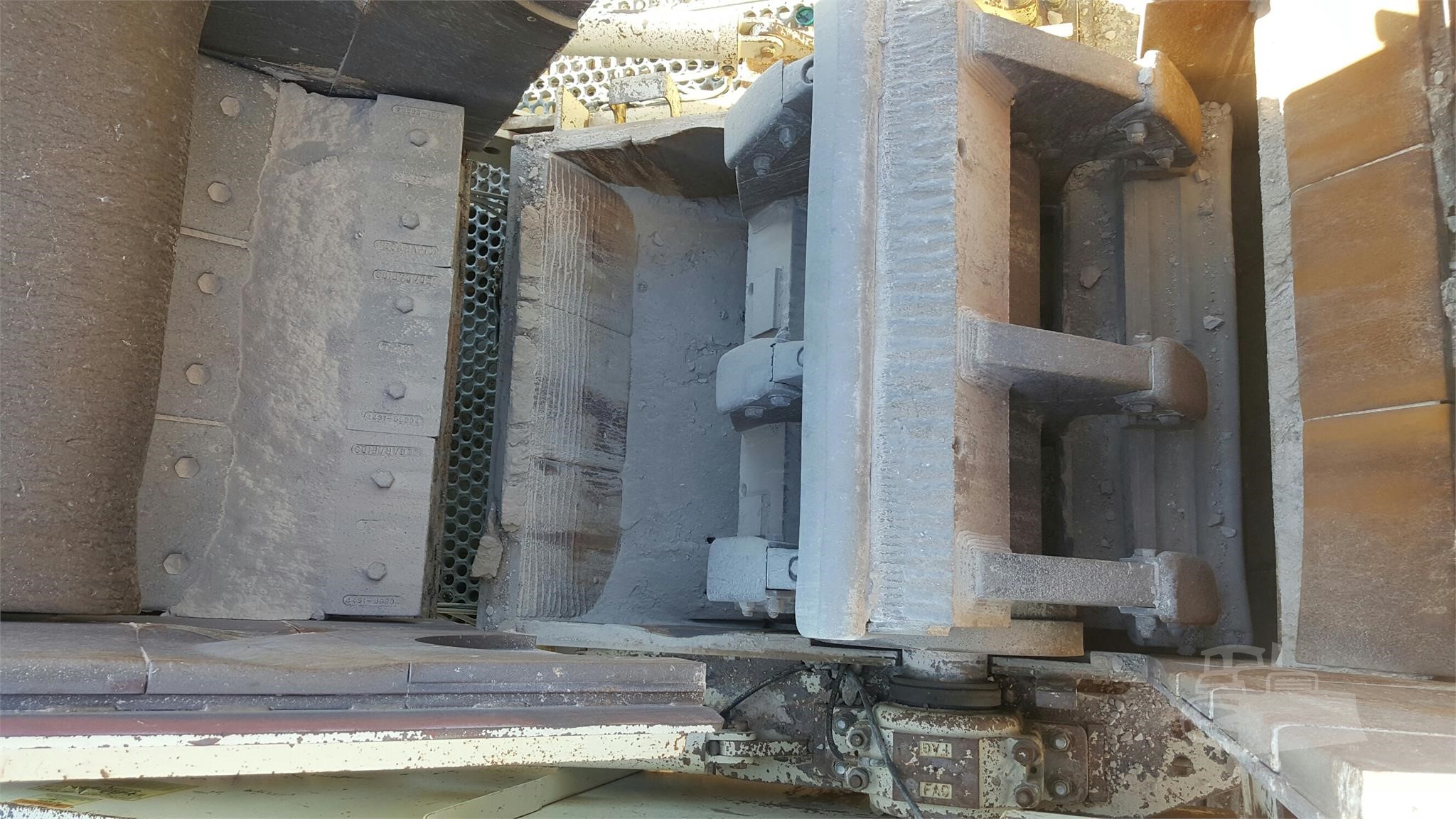

5048 HORIZONTAL SHAFT IMPACTOR
Extra large 43-1/4" feed opening
Aggressive, high inertia, weight efficient 3-bar rotor
High strength, patented huck-bolted stub shaft design
Rotor lock pin, large inspection doors on side and front of crusher
Large spherical roller bearing construction with taconite seal
Patented tool-less breaker plate adjusting system
Patented hydraulic assist system for breaker plate adjustment
CUMMINS DIESEL ENGINE
Fluid coupling for increased V-belt and engine life
Ground access 200 gallon fuel tank, easy access to all pumps
Federal EPA Tier 3 compliant
VIBRATING GRIZZLY FEEDER
Aggressive 7/16" stroke, adjustable stroke angle
Deep formed steel side sheets, durable high strength steel pan
ARS pan and side liners
Adjustable 60" long grizzly section
Self-relieving tapered grizzly bar prevents plugging
Double deck grizzly for fines/dirt removal
DISCHARGE CONVEYOR
9'7" discharge height, 42" wide removal conveyor
12" heavy duty lagged head pulley, 10" wing pulley
Full rubber skirting to head pulley
Terex Cedarapids 5048 horizontal shaft impact crusher
Terex Cedarapids 42" x 14' vibrating grizzly feeder
"B5" track with individual hydrostatic drive motors
42" product conveyor hydraulic drive
24" wide side discharge bypass conveyor with 2-way bypass chute
Cummins QSM11 power unit rated 400 HP @ 1800 RPM
Plant controls with radio remote for track speed, grizzly feeder and E-stop
Dust suppression spray system with pump, filter and atomizer nozzles
Chassis, walkways, platforms and guards
Optional 41" long cross belt Eriez magnet with hydraulic drive
5048 HORIZONTAL SHAFT IMPACTOR
Extra large 43-1/4" feed opening
Aggressive, high inertia, weight efficient 3-bar rotor
High strength, patented huck-bolted stub shaft design
Rotor lock pin, large inspection doors on side and front of crusher
Large spherical roller bearing construction with taconite seal
Patented tool-less breaker plate adjusting system
Patented hydraulic assist system for breaker plate adjustment
CUMMINS DIESEL ENGINE
Fluid coupling for increased V-belt and engine life
Ground access 200 gallon fuel tank, easy access to all pumps
Federal EPA Tier 3 compliant
VIBRATING GRIZZLY FEEDER
Aggressive 7/16" stroke, adjustable stroke angle
Deep formed steel side sheets, durable high strength steel pan
ARS pan and side liners
Adjustable 60" long grizzly section
Self-relieving tapered grizzly bar prevents plugging
Double deck grizzly for fines/dirt removal
DISCHARGE CONVEYOR
9'7" discharge height, 42" wide removal conveyor
12" heavy duty lagged head pulley, 10" wing pulley
Full rubber skirting to head pulley
Information:
| Year | 2006 |
| Serial Number | 53557 |
| Stock Number | EQ0000031 |
