2002 DEERE 50ZTS
Price:USD $21,000
Buy
2002 DEERE 50ZTS
Used and New
Description:

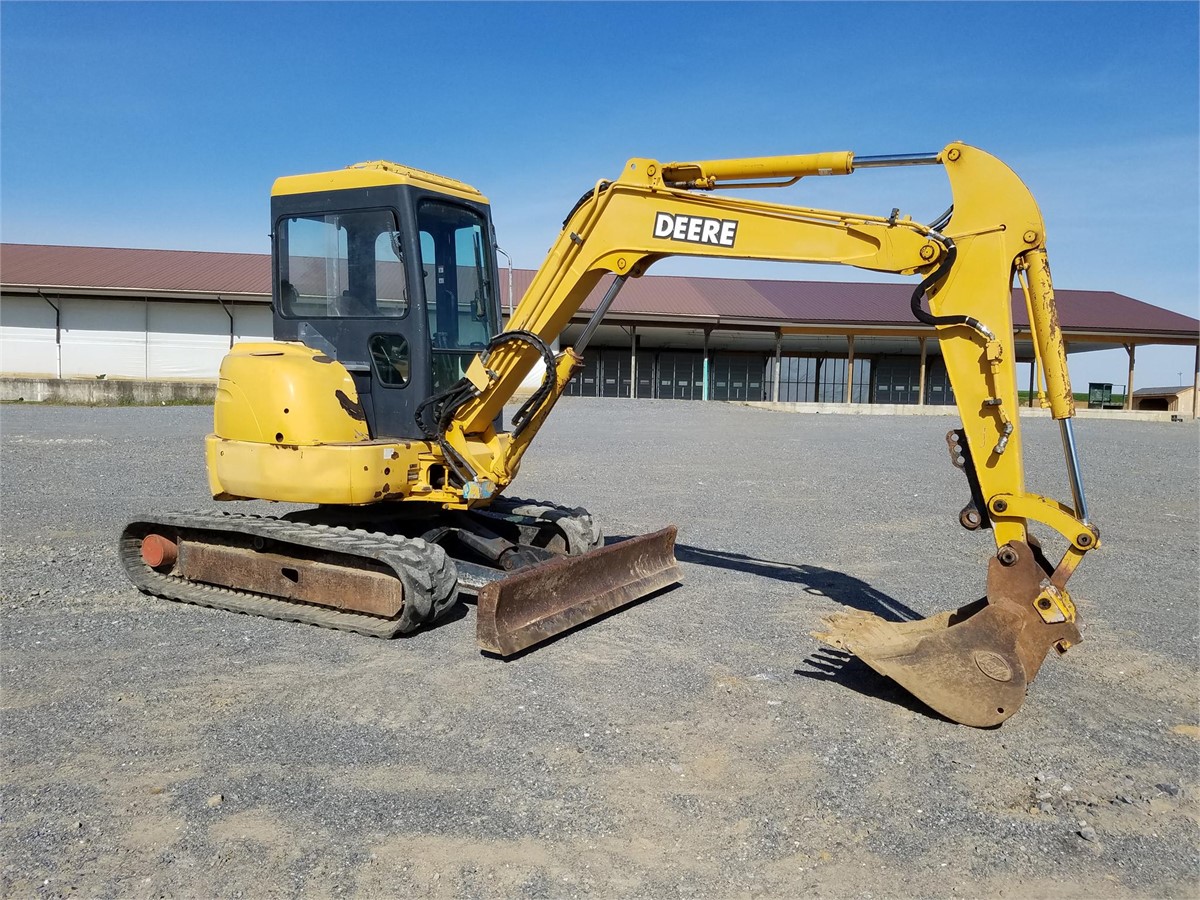

EROPS, Cab, Heat. Plumbed, Blade, Coupler w/ extra bucket- wide cleanout angled wrist-a-twist , Good tracks & UC, Runs out well. Please view the inspection video/pictures...
This machine starts up and runs out well. Engine does not have blowby, leak or smoke. No excessive play in pins. Hydraulic power is very good. Under carriage is in good operating condition. Please watch the video below! This machine is also for rent locally so hours and condition may slightly change from time of pictures.
Specs:
SPECIFICATIONS
Years Mfg: 1999-2002
Engine Make: ISUZU 4LE1
Engine HP: 41.5
Carrier: CRWLR
Bucket C.Y.: 0.26
Weight: 10252
DIMENSIONS
Length Width Height
17'5" 6'7" 8'7"
Boom/Stick Option (HEX) 1
A. SHIPPING LENGTH OF UNIT 17.4 ft in 5309.6 mm
I. MAX CUTTING HEIGHT 16.9 ft in 5157.2 mm
J. MAX LOADING HEIGHT 11.5 ft in 3505.2 mm
K. MAX REACH ALONG GROUND 19.1 ft in 5815.6 mm
L. MAX VERTICAL WALL DIGGING DEPTH 8.8 ft in 2667 mm
M. MAX DIGGING DEPTH 11.8 ft in 3605.8 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 6.6 ft in 2005.6 mm
D. LENGTH OF TRACK ON GROUND 8.1 ft in 2462.8 mm
E. GROUND CLEARANCE 1.1 ft in 329.2 mm
G. HEIGHT TO TOP OF CAB 8.6 ft in 2615.2 mm
H. TAIL SWING RADIUS 3.3 ft in 990.6 mm
O. COUNTERWEIGHT CLEARANCE 2 ft in 609.6 mm
Specification
Engine
MAKE Isuzu
MODEL 4LE1
GROSS POWER 38 hp 28.3 kw
DISPLACEMENT 133 cu in 2.2 L
Operational
OPERATING WEIGHT 10565 lb 4792.2 kg
FUEL CAPACITY 13.2 gal 50 L
HYDRAUILC SYSTEM FLUID CAPACITY 11.8 gal 44.7 L
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 35 amps
HYDRAULIC PUMP FLOW CAPACITY 21.9 gal/min 82.9 L/min
Swing Mechanism
SWING SPEED 7.4 rpm
Undercarriage
GROUND PRESSURE 3.8 psi 26.3 kPa
MAX TRAVEL SPEED 2.8 mph 4.5 km/h
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Arm Length 4ft. 5.0in. (1340mm )
SHIPPING LENGTH OF UNIT 17.4 ft in 5309.6 mm
MAX DIGGING DEPTH 11.8 ft in 3605.8 mm
MAX REACH ALONG GROUND 19.1 ft in 5815.6 mm
MAX CUTTING HEIGHT 16.9 ft in 5157.2 mm
MAX LOADING HEIGHT 11.5 ft in 3505.2 mm
MAX VERTICAL WALL DIGGING DEPTH 8.8 ft in 2667 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 6.6 ft in 2005.6 mm
HEIGHT TO TOP OF CAB 8.6 ft in 2615.2 mm
GROUND CLEARANCE 1.1 ft in 329.2 mm
COUNTERWEIGHT CLEARANCE 2 ft in 609.6 mm
TAIL SWING RADIUS 3.3 ft in 990.6 mm
LENGTH OF TRACK ON GROUND 8.1 ft in 2462.8 mm
NOTE**: Before coming to look at a specific piece of equipment, please make an appointment. Depending on the piece it may be at a different location.
***View many other deals*** on the Q.U.E. Sales Inc website.
We can help you arrange freight. We deal with several different trucking companies and can get very competitive rates. If you would like a quick shipping rate please email, text or call me with your zip code!
We accept many different payment methods, contact us for further information!
We have several finance companies that we deal with. If you are interested, contact us for a credit application!
Thank you for viewing our equipment and have a great day!
Contact us with the information provided below.
Heater, Operating Weight (lbs): 10,250, Dig Depth (inches): 140, Track Type: Rubber
This machine starts up and runs out well. Engine does not have blowby, leak or smoke. No excessive play in pins. Hydraulic power is very good. Under carriage is in good operating condition. Please watch the video below! This machine is also for rent locally so hours and condition may slightly change from time of pictures.
Specs:
SPECIFICATIONS
Years Mfg: 1999-2002
Engine Make: ISUZU 4LE1
Engine HP: 41.5
Carrier: CRWLR
Bucket C.Y.: 0.26
Weight: 10252
DIMENSIONS
Length Width Height
17'5" 6'7" 8'7"
Boom/Stick Option (HEX) 1
A. SHIPPING LENGTH OF UNIT 17.4 ft in 5309.6 mm
I. MAX CUTTING HEIGHT 16.9 ft in 5157.2 mm
J. MAX LOADING HEIGHT 11.5 ft in 3505.2 mm
K. MAX REACH ALONG GROUND 19.1 ft in 5815.6 mm
L. MAX VERTICAL WALL DIGGING DEPTH 8.8 ft in 2667 mm
M. MAX DIGGING DEPTH 11.8 ft in 3605.8 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 6.6 ft in 2005.6 mm
D. LENGTH OF TRACK ON GROUND 8.1 ft in 2462.8 mm
E. GROUND CLEARANCE 1.1 ft in 329.2 mm
G. HEIGHT TO TOP OF CAB 8.6 ft in 2615.2 mm
H. TAIL SWING RADIUS 3.3 ft in 990.6 mm
O. COUNTERWEIGHT CLEARANCE 2 ft in 609.6 mm
Specification
Engine
MAKE Isuzu
MODEL 4LE1
GROSS POWER 38 hp 28.3 kw
DISPLACEMENT 133 cu in 2.2 L
Operational
OPERATING WEIGHT 10565 lb 4792.2 kg
FUEL CAPACITY 13.2 gal 50 L
HYDRAUILC SYSTEM FLUID CAPACITY 11.8 gal 44.7 L
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 35 amps
HYDRAULIC PUMP FLOW CAPACITY 21.9 gal/min 82.9 L/min
Swing Mechanism
SWING SPEED 7.4 rpm
Undercarriage
GROUND PRESSURE 3.8 psi 26.3 kPa
MAX TRAVEL SPEED 2.8 mph 4.5 km/h
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Arm Length 4ft. 5.0in. (1340mm )
SHIPPING LENGTH OF UNIT 17.4 ft in 5309.6 mm
MAX DIGGING DEPTH 11.8 ft in 3605.8 mm
MAX REACH ALONG GROUND 19.1 ft in 5815.6 mm
MAX CUTTING HEIGHT 16.9 ft in 5157.2 mm
MAX LOADING HEIGHT 11.5 ft in 3505.2 mm
MAX VERTICAL WALL DIGGING DEPTH 8.8 ft in 2667 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 6.6 ft in 2005.6 mm
HEIGHT TO TOP OF CAB 8.6 ft in 2615.2 mm
GROUND CLEARANCE 1.1 ft in 329.2 mm
COUNTERWEIGHT CLEARANCE 2 ft in 609.6 mm
TAIL SWING RADIUS 3.3 ft in 990.6 mm
LENGTH OF TRACK ON GROUND 8.1 ft in 2462.8 mm
NOTE**: Before coming to look at a specific piece of equipment, please make an appointment. Depending on the piece it may be at a different location.
***View many other deals*** on the Q.U.E. Sales Inc website.
We can help you arrange freight. We deal with several different trucking companies and can get very competitive rates. If you would like a quick shipping rate please email, text or call me with your zip code!
We accept many different payment methods, contact us for further information!
We have several finance companies that we deal with. If you are interested, contact us for a credit application!
Thank you for viewing our equipment and have a great day!
Contact us with the information provided below.
Heater, Operating Weight (lbs): 10,250, Dig Depth (inches): 140, Track Type: Rubber
Information:
| Year | 2002 |
| Location | Roaring Spring, Pennsylvania |
| Stock Number | 50ZTS |
| Hours | 5,122 |
| Serial Number | FF050ZX240533 |
| Horse Power | 40 |
