75D DEERE Heavy sale in Pennsylvania

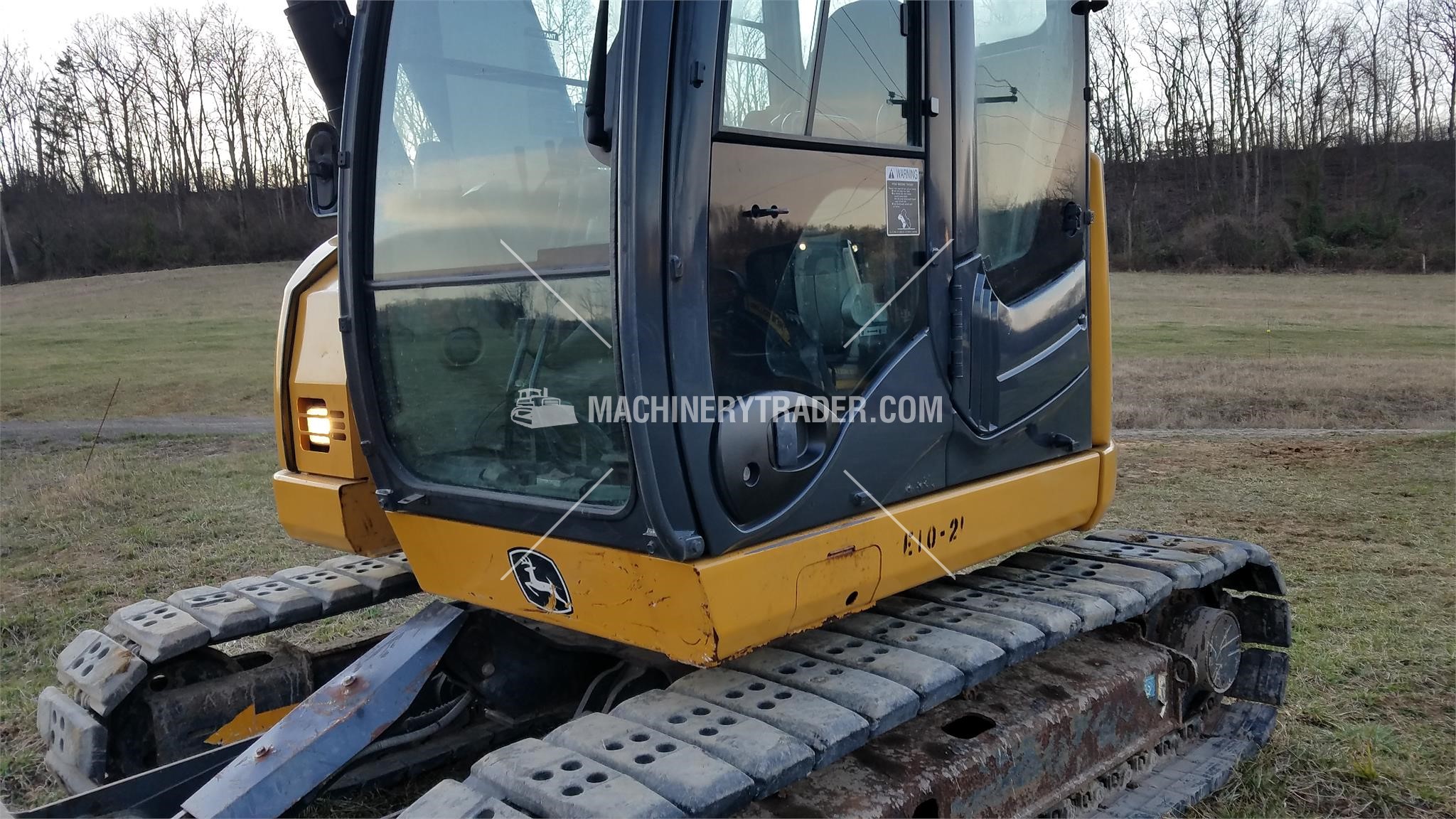

EROPS, Cab, Heat, AC. Plumbed, Blade, Manual Coupler, New Teeth On Bucket. Good rubber road liner pads & UC, Runs out well. Please view the inspection video/pictures...


This machine starts up and runs out well. Engine does not have blowby, leak or smoke. No excessive play in pins. Hydraulic power is very good. Under carriage is in good operating condition. Please watch the video below!


Specs:

Years Mfg: 2008-2013
Engine Make: ISUZU 4LE2X
Engine HP: 54.3
Carrier: CRWLR
Bucket C.Y.:
Weight: 17745
DIMENSIONS
Length Width Height
20'9" 8'1" 8'11"

Boom/Stick Option

A. SHIPPING LENGTH OF UNIT 20.7 ft in 6300 mm
C. SHIPPING HEIGHT OF UNIT 8.8 ft in 2690 mm
I. MAX CUTTING HEIGHT 23.7 ft in 7210 mm
J. MAX LOADING HEIGHT 16.8 ft in 5120 mm
K. MAX REACH ALONG GROUND 20.5 ft in 6260 mm
L. MAX VERTICAL WALL DIGGING DEPTH 12 ft in 3670 mm
M. MAX DIGGING DEPTH 13.5 ft in 4110 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 8.1 ft in 2470 mm
D. LENGTH OF TRACK ON GROUND 7.5 ft in 2290 mm
E. GROUND CLEARANCE 1.2 ft in 360 mm
G. HEIGHT TO TOP OF CAB 8.8 ft in 2690 mm
H. TAIL SWING RADIUS 4.2 ft in 1290 mm
O. COUNTERWEIGHT CLEARANCE 2.5 ft in 760 mm
Undercarriage
F. TRACK GAUGE 6.1 ft in 1870 mm
N. SHOE SIZE 23.6 in 600 mm
Specification
Engine
MAKE Isuzu
MODEL 4LE2X, Tier IIII certified
NET POWER 54 hp 40.3 kw
POWER MEASURED @ 2000 rpm
DISPLACEMENT 133 cu in 2.2 L
NUMBER OF CYLINDERS 4
ASPIRATION turbocharged, intercooler
Operational
OPERATING WEIGHT 17742.8 lb 8048 kg
FUEL CAPACITY 35.7 gal 135 L
COOLING SYSTEM FLUID CAPACITY 2.7 gal 10.3 L
HYDRAUILC SYSTEM FLUID CAPACITY 26.4 gal 100 L
ENGINE OIL CAPACITY 3.2 gal 12.1 L
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 50 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4554 psi 31398.7 kPa
HYDRAULIC PUMP FLOW CAPACITY 58.1 gal/min 220 L/min
Swing Mechanism
SWING SPEED 10.5 rpm
SWING TORQUE 12244 lb ft 16600.6 Nm
Undercarriage
NUMBER OF SHOES PER SIDE 40
SHOE SIZE 23.6 in 600 mm
NUMBER OF CARRIER ROLLERS PER SIDE 1
NUMBER OF TRACK ROLLERS PER SIDE 5
GROUND PRESSURE 3.7 psi 25.5 kPa
MAX TRAVEL SPEED 3.1 mph 5 km/h
DRAWBAR PULL 14661 lb 65.2 kN
TRACK GAUGE 6.1 ft in 1870 mm
Buckets
REFERENCE BUCKET CAPACITY 0.54 yd3 0.41 m3
MINIMUM BUCKET CAPACITY 0.41 yd3 0.31 m3
MAXIMUM BUCKET CAPACITY 0.65 yd3 0.5 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Boom 12'8" (3720mm) / stick 5'4" (1620mm)
SHIPPING HEIGHT OF UNIT 8.8 ft in 2690 mm
SHIPPING LENGTH OF UNIT 20.7 ft in 6300 mm
MAX DIGGING DEPTH 13.5 ft in 4110 mm
MAX REACH ALONG GROUND 20.5 ft in 6260 mm
MAX CUTTING HEIGHT 23.7 ft in 7210 mm
MAX LOADING HEIGHT 16.8 ft in 5120 mm
MAX VERTICAL WALL DIGGING DEPTH 12 ft in 3670 mm
Boom/Stick Option (HEX) 2
BOOM/STICK OPTION (HEX) 2 Boom 12'8" (3720mm) / stick 6'11" (2120mm)
SHIPPING HEIGHT OF UNIT 9.3 ft in 2830 mm
SHIPPING LENGTH OF UNIT 20.9 ft in 6370 mm
MAX DIGGING DEPTH 15.1 ft in 4610 mm
MAX REACH ALONG GROUND 22.2 ft in 6760 mm
MAX CUTTING HEIGHT 25 ft in 7610 mm
MAX LOADING HEIGHT 18.1 ft in 5510 mm
MAX VERTICAL WALL DIGGING DEPTH 13.8 ft in 4220 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 8.1 ft in 2470 mm
HEIGHT TO TOP OF CAB 8.8 ft in 2690 mm
GROUND CLEARANCE 1.2 ft in 360 mm
COUNTERWEIGHT CLEARANCE 2.5 ft in 760 mm
TAIL SWING RADIUS 4.2 ft in 1290 mm
LENGTH OF TRACK ON GROUND 7.5 ft in 2290 mm


NOTE**: Before coming to look at a specific piece of equipment, please make an appointment. Depending on the piece it may be at a different location.

***View many other deals*** on the Q.U.E. Sales Inc website.


We can help you arrange freight. We deal with several different trucking companies and can get very competitive rates. If you would like a quick shipping rate please email, text or call me with your zip code!

We accept many different payment methods, contact us for further information!

We have several finance companies that we deal with. If you are interested, contact us for a credit application!



Thank you for viewing our equipment and have a great day!

Contact us with the information provided below.

A/C, Engine Manufacturer: Isuzu, Engine Model: 4LE2X, Operating Weight (lbs): 17,743, Shipping Width (inches): 97, Fuel Capacity: 36, Max Travel Speed: 3, Shipping Height (inches): 102, Shipping Length (inches): 248

Year	2010
Serial Number	FF075DX014143
Stock Number	75D7k
Hours	7,169
Horse Power	54

EROPS, Cab, Heat, AC. Plumbed, Manual Thumb, Blade, Manual Coupler, Good rubber road liner pads & UC, Runs out well. Please view the inspection video/pictures...


This machine starts up and runs out well. Engine does not have blowby, leak or smoke. No excessive play in pins. Hydraulic power is very good. Under carriage is in good operating condition. Please watch the video below! This machine is also for rent locally so hours and condition may slightly change from time of pictures.



Specs:

Years Mfg: 2008-2013
Engine Make: ISUZU 4LE2X
Engine HP: 54.3
Carrier: CRWLR
Bucket C.Y.:
Weight: 17745
DIMENSIONS
Length Width Height
20'9" 8'1" 8'11"

Boom/Stick Option

A. SHIPPING LENGTH OF UNIT 20.7 ft in 6300 mm
C. SHIPPING HEIGHT OF UNIT 8.8 ft in 2690 mm
I. MAX CUTTING HEIGHT 23.7 ft in 7210 mm
J. MAX LOADING HEIGHT 16.8 ft in 5120 mm
K. MAX REACH ALONG GROUND 20.5 ft in 6260 mm
L. MAX VERTICAL WALL DIGGING DEPTH 12 ft in 3670 mm
M. MAX DIGGING DEPTH 13.5 ft in 4110 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 8.1 ft in 2470 mm
D. LENGTH OF TRACK ON GROUND 7.5 ft in 2290 mm
E. GROUND CLEARANCE 1.2 ft in 360 mm
G. HEIGHT TO TOP OF CAB 8.8 ft in 2690 mm
H. TAIL SWING RADIUS 4.2 ft in 1290 mm
O. COUNTERWEIGHT CLEARANCE 2.5 ft in 760 mm
Undercarriage
F. TRACK GAUGE 6.1 ft in 1870 mm
N. SHOE SIZE 23.6 in 600 mm
Specification
Engine
MAKE Isuzu
MODEL 4LE2X, Tier IIII certified
NET POWER 54 hp 40.3 kw
POWER MEASURED @ 2000 rpm
DISPLACEMENT 133 cu in 2.2 L
NUMBER OF CYLINDERS 4
ASPIRATION turbocharged, intercooler
Operational
OPERATING WEIGHT 17742.8 lb 8048 kg
FUEL CAPACITY 35.7 gal 135 L
COOLING SYSTEM FLUID CAPACITY 2.7 gal 10.3 L
HYDRAUILC SYSTEM FLUID CAPACITY 26.4 gal 100 L
ENGINE OIL CAPACITY 3.2 gal 12.1 L
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 50 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4554 psi 31398.7 kPa
HYDRAULIC PUMP FLOW CAPACITY 58.1 gal/min 220 L/min
Swing Mechanism
SWING SPEED 10.5 rpm
SWING TORQUE 12244 lb ft 16600.6 Nm
Undercarriage
NUMBER OF SHOES PER SIDE 40
SHOE SIZE 23.6 in 600 mm
NUMBER OF CARRIER ROLLERS PER SIDE 1
NUMBER OF TRACK ROLLERS PER SIDE 5
GROUND PRESSURE 3.7 psi 25.5 kPa
MAX TRAVEL SPEED 3.1 mph 5 km/h
DRAWBAR PULL 14661 lb 65.2 kN
TRACK GAUGE 6.1 ft in 1870 mm
Buckets
REFERENCE BUCKET CAPACITY 0.54 yd3 0.41 m3
MINIMUM BUCKET CAPACITY 0.41 yd3 0.31 m3
MAXIMUM BUCKET CAPACITY 0.65 yd3 0.5 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Boom 12'8" (3720mm) / stick 5'4" (1620mm)
SHIPPING HEIGHT OF UNIT 8.8 ft in 2690 mm
SHIPPING LENGTH OF UNIT 20.7 ft in 6300 mm
MAX DIGGING DEPTH 13.5 ft in 4110 mm
MAX REACH ALONG GROUND 20.5 ft in 6260 mm
MAX CUTTING HEIGHT 23.7 ft in 7210 mm
MAX LOADING HEIGHT 16.8 ft in 5120 mm
MAX VERTICAL WALL DIGGING DEPTH 12 ft in 3670 mm
Boom/Stick Option (HEX) 2
BOOM/STICK OPTION (HEX) 2 Boom 12'8" (3720mm) / stick 6'11" (2120mm)
SHIPPING HEIGHT OF UNIT 9.3 ft in 2830 mm
SHIPPING LENGTH OF UNIT 20.9 ft in 6370 mm
MAX DIGGING DEPTH 15.1 ft in 4610 mm
MAX REACH ALONG GROUND 22.2 ft in 6760 mm
MAX CUTTING HEIGHT 25 ft in 7610 mm
MAX LOADING HEIGHT 18.1 ft in 5510 mm
MAX VERTICAL WALL DIGGING DEPTH 13.8 ft in 4220 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 8.1 ft in 2470 mm
HEIGHT TO TOP OF CAB 8.8 ft in 2690 mm
GROUND CLEARANCE 1.2 ft in 360 mm
COUNTERWEIGHT CLEARANCE 2.5 ft in 760 mm
TAIL SWING RADIUS 4.2 ft in 1290 mm
LENGTH OF TRACK ON GROUND 7.5 ft in 2290 mm


NOTE**: Before coming to look at a specific piece of equipment, please make an appointment. Depending on the piece it may be at a different location.

***View many other deals*** on the Q.U.E. Sales Inc website.


We can help you arrange freight. We deal with several different trucking companies and can get very competitive rates. If you would like a quick shipping rate please email, text or call me with your zip code!

We accept many different payment methods, contact us for further information!

We have several finance companies that we deal with. If you are interested, contact us for a credit application!



Thank you for viewing our equipment and have a great day!

Contact us with the information provided below.

A/C, Heater, Operating Weight (lbs): 17,745

Year	2010
Stock Number	75D
Hours	6,331
Serial Number	1FF075DXLA0014177
Horse Power	54

75D EXCAVATOR SAE, Operators Station: Cab w/ AC, Arms: Long Arm, Tracks: Rubber Pads, Attachments: Blade, PT&HYD SECURE EXP 9/08/2019 OR 4000HRS, Extended Warranty

Year	2012
Location	Lebanon, Pennsylvania
Stock Number	00070623
Hours	1,019
Serial Number	1FF075DXKCG014599
